ESA Biomass Level 1B COG georeferencing¶

The Level 1B data are distributed as cloud-optimized geotiffs (COGs) with ground control point (GCP) georeferencing instead of an affine transform. The data are georeferenced in this way because the amplitude values from the raw data correspond the radar geometry coordinates instead of a rectangular grid.

From the Level 1a/b/c Product Specification description of the ModelTiePointTag GeoTIFF metadata tag:

Maps image pixels to geographic coordinates, where N is the number of tie points in the scene, i.e.:

• 5 tie points along range direction
• 1 tie point each 10 seconds along azimuth direction

Note: values have been computed in order to have an overall accuracy not worse than 100m (above ellipsoid).

Most applications and tools that can read COGs are able to use the GCPs to georeference the arrays but after reviewing the original data as well as reprojected arrays derived from the original data it became clear that the georeferencing does not yield a very good fit to physical features (e.g. river channels) from other Level 1b granules or external data sources.

The Look-Up Table (LUT) Annotation Data Set (ADS) NetCDF asset from each granule contains a 2D coordinate map that can be used to assign a precise latitude and longitude for each cell in the data array which can in turn be provided to tools like rasterio when reprojecting the source data to a rectangular grid in a 2D coordinate system (e.g. UTM zone bbox).

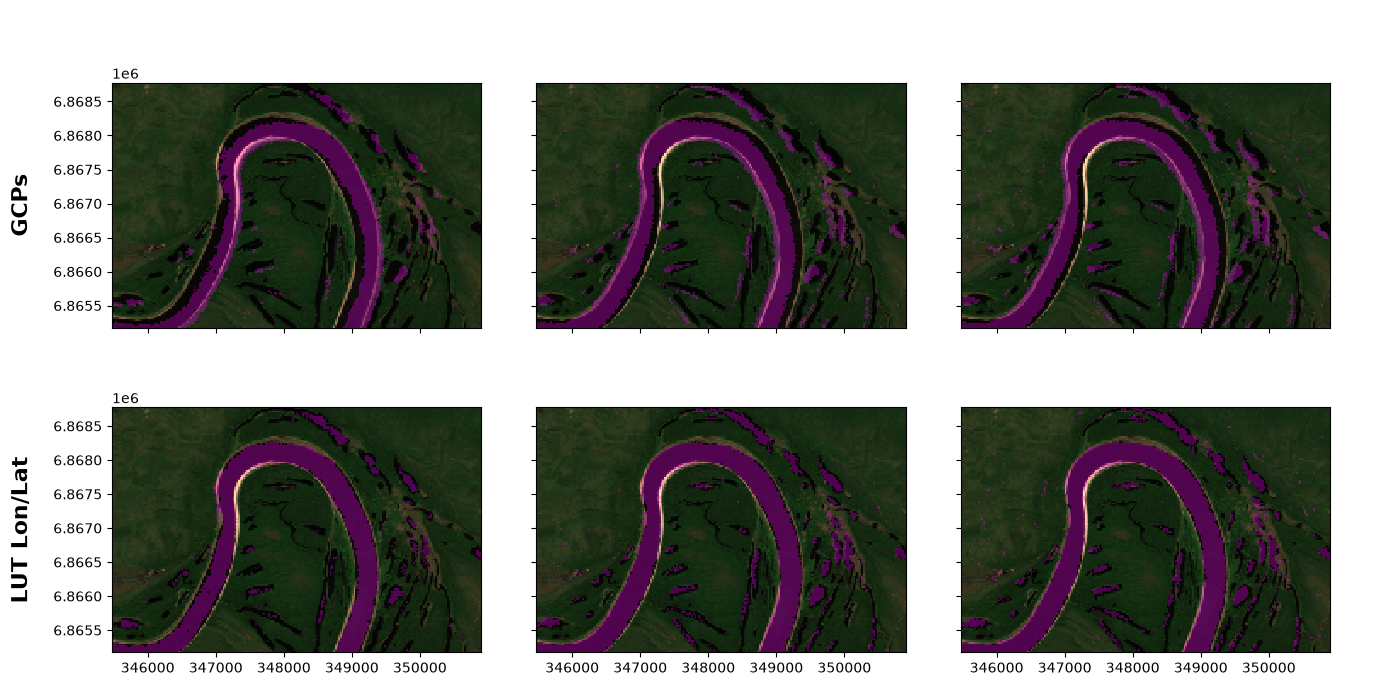

Here is a comparison of mapped river channels from three granules using both georeferencing approaches (GCP and LUT):

Applications that wish to use the Level 1b for high-resolution mapping of physical characteristics may want to follow the approach for georeferencing the Level 1b data that is outlined in this notebook.

In [1]:

import os
from urllib.parse import urlsplit

import matplotlib.pyplot as plt
import numpy as np
import obstore as obs
import requests
import rasterio
import xarray as xr
from netCDF4 import Dataset
from obstore.store import HTTPStore
from pystac import Item
from pystac_client import Client
from rasterio.crs import CRS
from rasterio.enums import Resampling
from rasterio.session import AWSSession
from rasterio.transform import from_bounds
from rasterio.warp import reproject, transform_bounds
from shapely.geometry import box
from scipy.ndimage import map_coordinates
from xml.etree import ElementTree


STAC_API_URL = "https://catalog.maap.eo.esa.int/catalogue"
TOKEN_URL = "https://iam.maap.eo.esa.int/realms/esa-maap/protocol/openid-connect/token"
POLARIZATIONS = ("HH", "HV", "VH", "VV")

import os from urllib.parse import urlsplit import matplotlib.pyplot as plt import numpy as np import obstore as obs import requests import rasterio import xarray as xr from netCDF4 import Dataset from obstore.store import HTTPStore from pystac import Item from pystac_client import Client from rasterio.crs import CRS from rasterio.enums import Resampling from rasterio.session import AWSSession from rasterio.transform import from_bounds from rasterio.warp import reproject, transform_bounds from shapely.geometry import box from scipy.ndimage import map_coordinates from xml.etree import ElementTree STAC_API_URL = "https://catalog.maap.eo.esa.int/catalogue" TOKEN_URL = "https://iam.maap.eo.esa.int/realms/esa-maap/protocol/openid-connect/token" POLARIZATIONS = ("HH", "HV", "VH", "VV")

Setup¶

To demonstrate the georefencing situation I have picked a small area of interest that is covered by multiple Level 1b granules from June 2026. The accompanying Sentinel 2 granule will be used as "ground truth" for physical features on the landscape in the same time/place. To make it possible to compare the Biomass Level 1b data to the Sentinel 2 data, all sources will be projected to a UTM coordinate system with a 25 m resolution.

In [2]:

bbox = (108.06, 61.89, 108.16, 61.92)  # AOI covering a bend in a river
crs = CRS.from_string("EPSG:32649")  # approriate UTM zone for the AOI
target_resolution = 25

s2_stac_item_href = "https://stac.dataspace.copernicus.eu/v1/collections/sentinel-2-l2a/items/S2C_MSIL2A_20260611T041551_N0512_R090_T49VCJ_20260611T074815"

bbox = (108.06, 61.89, 108.16, 61.92) # AOI covering a bend in a river crs = CRS.from_string("EPSG:32649") # approriate UTM zone for the AOI target_resolution = 25 s2_stac_item_href = "https://stac.dataspace.copernicus.eu/v1/collections/sentinel-2-l2a/items/S2C_MSIL2A_20260611T041551_N0512_R090_T49VCJ_20260611T074815"

Define a grid-aligned bounding box and affine transform for the target array in the UTM coordinate system

In [3]:

raw_bbox = transform_bounds("EPSG:4326", crs, *bbox)

grid_xmin = np.floor(raw_bbox[0] / target_resolution) * target_resolution
grid_ymin = np.floor(raw_bbox[1] / target_resolution) * target_resolution
grid_xmax = np.ceil(raw_bbox[2] / target_resolution) * target_resolution
grid_ymax = np.ceil(raw_bbox[3] / target_resolution) * target_resolution

target_bbox = (grid_xmin, grid_ymin, grid_xmax, grid_ymax)

target_width = int((grid_xmax - grid_xmin) / target_resolution)
target_height = int((grid_ymax - grid_ymin) / target_resolution)

target_transform = from_bounds(*target_bbox, target_width, target_height)

# coordinates for data arrays
x = target_transform.c + target_transform.a * (np.arange(target_width) + 0.5)
y = target_transform.f + target_transform.e * (np.arange(target_height) + 0.5)

print(target_height, target_width)
print(target_transform)

raw_bbox = transform_bounds("EPSG:4326", crs, *bbox) grid_xmin = np.floor(raw_bbox[0] / target_resolution) * target_resolution grid_ymin = np.floor(raw_bbox[1] / target_resolution) * target_resolution grid_xmax = np.ceil(raw_bbox[2] / target_resolution) * target_resolution grid_ymax = np.ceil(raw_bbox[3] / target_resolution) * target_resolution target_bbox = (grid_xmin, grid_ymin, grid_xmax, grid_ymax) target_width = int((grid_xmax - grid_xmin) / target_resolution) target_height = int((grid_ymax - grid_ymin) / target_resolution) target_transform = from_bounds(*target_bbox, target_width, target_height) # coordinates for data arrays x = target_transform.c + target_transform.a * (np.arange(target_width) + 0.5) y = target_transform.f + target_transform.e * (np.arange(target_height) + 0.5) print(target_height, target_width) print(target_transform)

144 217
| 25.00, 0.00, 345475.00|
| 0.00,-25.00, 6868775.00|
| 0.00, 0.00, 1.00|

Sentinel 2 data¶

We will load a visual preview image for the target array from a Sentinel 2 item. To do this we have to retrieve access credentials for the Copernicus S3 endpoint (following the guides here: https://documentation.dataspace.copernicus.eu/APIs/S3.html).

In [11]:

# retrieve an access token to be used for requesting S3 credentials
copernicus_token_url = "https://identity.dataspace.copernicus.eu/auth/realms/CDSE/protocol/openid-connect/token"

token_res = requests.post(
    copernicus_token_url,
    data={
        "client_id": "cdse-public",
        "username": os.getenv("COPERNICUS_USERNAME"),
        "password": os.getenv("COPERNICUS_PASSWORD"),
        "grant_type": "password",
    },
)
token_res.raise_for_status()
copernicus_access_token = token_res.json()["access_token"]

# retrieve S3 credentials for copernicus S3 access point
credentials_response = requests.post(
    "https://s3-keys-manager.cloudferro.com/api/user/credentials",
    headers={
        "Authorization": f"Bearer {copernicus_access_token}",
        "Accept": "application/json",
    },
)
credentials_response.raise_for_status()
copernicus_s3_credentials = credentials_response.json()

# retrieve an access token to be used for requesting S3 credentials copernicus_token_url = "https://identity.dataspace.copernicus.eu/auth/realms/CDSE/protocol/openid-connect/token" token_res = requests.post( copernicus_token_url, data={ "client_id": "cdse-public", "username": os.getenv("COPERNICUS_USERNAME"), "password": os.getenv("COPERNICUS_PASSWORD"), "grant_type": "password", }, ) token_res.raise_for_status() copernicus_access_token = token_res.json()["access_token"] # retrieve S3 credentials for copernicus S3 access point credentials_response = requests.post( "https://s3-keys-manager.cloudferro.com/api/user/credentials", headers={ "Authorization": f"Bearer {copernicus_access_token}", "Accept": "application/json", }, ) credentials_response.raise_for_status() copernicus_s3_credentials = credentials_response.json()

Load an array from the visual asset of a Sentinel 2 item (in the target transform)

In [12]:

s2_item = Item.from_dict(requests.get(s2_stac_item_href).json())

session = AWSSession(
    endpoint_url="eodata.dataspace.copernicus.eu",
    aws_access_key_id=copernicus_s3_credentials["access_id"],
    aws_secret_access_key=copernicus_s3_credentials["secret"],
)
with rasterio.Env(session=session, AWS_VIRTUAL_HOSTING=False, AWS_HTTPS=True):
    with rasterio.open(s2_item.assets["TCI_10m"].href) as src:
        s2 = np.empty(
            (src.count, target_height, target_width),
            dtype=src.meta["dtype"],
        )

        reproject(
            source=rasterio.band(src, src.indexes),
            destination=s2,
            src_transform=src.transform,
            src_crs=src.crs,
            dst_transform=target_transform,
            dst_crs=crs,
            resampling=Resampling.nearest,
        )

s2_da = xr.DataArray(
    s2,
    dims=("band", "y", "x"),
    coords={
        "band": ["red", "green", "blue"],
        "x": x,
        "y": y,
    },
    attrs={"crs": crs, "transform": tuple(target_transform)},
)
s2_da.plot.imshow()

s2_item = Item.from_dict(requests.get(s2_stac_item_href).json()) session = AWSSession( endpoint_url="eodata.dataspace.copernicus.eu", aws_access_key_id=copernicus_s3_credentials["access_id"], aws_secret_access_key=copernicus_s3_credentials["secret"], ) with rasterio.Env(session=session, AWS_VIRTUAL_HOSTING=False, AWS_HTTPS=True): with rasterio.open(s2_item.assets["TCI_10m"].href) as src: s2 = np.empty( (src.count, target_height, target_width), dtype=src.meta["dtype"], ) reproject( source=rasterio.band(src, src.indexes), destination=s2, src_transform=src.transform, src_crs=src.crs, dst_transform=target_transform, dst_crs=crs, resampling=Resampling.nearest, ) s2_da = xr.DataArray( s2, dims=("band", "y", "x"), coords={ "band": ["red", "green", "blue"], "x": x, "y": y, }, attrs={"crs": crs, "transform": tuple(target_transform)}, ) s2_da.plot.imshow()

Out[12]:

<matplotlib.image.AxesImage at 0x7f55ac9f9f90>

The Sentinel 2 image will serve as the "ground truth" for physical features in the area of interest

Now conduct a STAC item search for Biomass Level 1b.

In [13]:

client = Client.open(STAC_API_URL)

search = client.search(
    collections="BiomassLevel1b",
    intersects=box(*bbox),
    datetime="2026-06-01T00:00:00Z/2026-06-12T00:00:00Z",
    sortby="datetime",
    max_items=6,
)

items = search.item_collection()
print(f"found {len(items)} items")
for item in items:
    print(item.id)

client = Client.open(STAC_API_URL) search = client.search( collections="BiomassLevel1b", intersects=box(*bbox), datetime="2026-06-01T00:00:00Z/2026-06-12T00:00:00Z", sortby="datetime", max_items=6, ) items = search.item_collection() print(f"found {len(items)} items") for item in items: print(item.id)

found 3 items
BIO_S2_DGM__1S_20260601T121355_20260601T121415_T_G01_M03_C07_T008_F100_02_DSD6MY
BIO_S3_DGM__1S_20260606T211626_20260606T211646_T_G01_M03_C01_T043_F056_02_DSMSWR
BIO_S3_DGM__1S_20260609T211628_20260609T211648_T_G01_M03_C02_T043_F056_02_DSSCXA

The ESA assets require an auth token to read over HTTP. I have the required credentials stored in ESA_MAAP_CLIENT_SECRET and ESA_OFFLINE_TOKEN environment variables. See the MAAP Docs for how to get these values from your ESA account.

In [14]:

client_secret = os.getenv("ESA_MAAP_CLIENT_SECRET")
offline_token = os.getenv("ESA_OFFLINE_TOKEN")


def request_access_token(client_secret: str, offline_token: str) -> str:
    """Exchange supplied MAAP credentials for an access token."""

    if not client_secret or not offline_token:
        raise ValueError("Missing MAAP credentials")

    response = requests.post(
        TOKEN_URL,
        data={
            "client_id": "offline-token",
            "client_secret": client_secret,
            "grant_type": "refresh_token",
            "refresh_token": offline_token,
            "scope": "offline_access openid",
        },
        timeout=60,
    )
    response.raise_for_status()
    token = response.json().get("access_token")

    if not token:
        raise RuntimeError("Failed to retrieve an access token from the IAM response")

    return token


token = request_access_token(client_secret, offline_token)

client_secret = os.getenv("ESA_MAAP_CLIENT_SECRET") offline_token = os.getenv("ESA_OFFLINE_TOKEN") def request_access_token(client_secret: str, offline_token: str) -> str: """Exchange supplied MAAP credentials for an access token.""" if not client_secret or not offline_token: raise ValueError("Missing MAAP credentials") response = requests.post( TOKEN_URL, data={ "client_id": "offline-token", "client_secret": client_secret, "grant_type": "refresh_token", "refresh_token": offline_token, "scope": "offline_access openid", }, timeout=60, ) response.raise_for_status() token = response.json().get("access_token") if not token: raise RuntimeError("Failed to retrieve an access token from the IAM response") return token token = request_access_token(client_secret, offline_token)

Default behavior: use GCPs for georeferencing¶

By default, GIS software like GDAL will use the COG's GCPs for georeferencing the data. This works by assigning mapping specific pixels to a set of geographic coordinates in the specified CRS. rasterio defers the GCP transformation algorithm to GDAL which depends on the number of GCPs present. Most Biomass COGs have ~35 GCPs which results in a second order polynomial transformation.

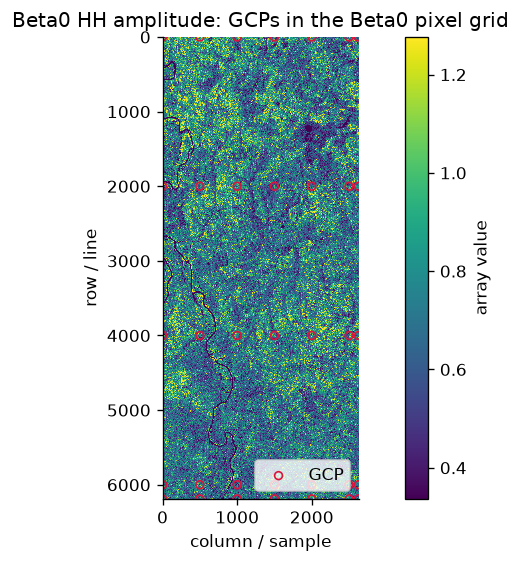

The image below shows the GCPs for a COG plotted over the array.

The following code will read the AOI from the COG assets of each item and reproject it to the UTM CRS using the GCPs. The data are then stacked into an xarray DataArray.

In [15]:

with rasterio.Env(GDAL_HTTP_HEADERS=f"Authorization: Bearer {token}"):
    with rasterio.open(items[0].assets["enclosure_tiff"].href) as src:
        reprojected = np.full(
            (len(items), src.count, target_height, target_width),
            np.nan,
            dtype=src.meta["dtype"],
        )

    for i, item in enumerate(items):
        with rasterio.open(item.assets["enclosure_tiff"].href) as src:
            gcps, gcp_crs = src.gcps

            reproject(
                source=rasterio.band(src, src.indexes),
                destination=reprojected[i],
                gcps=gcps,
                src_crs=gcp_crs,
                dst_transform=target_transform,
                dst_crs=crs,
                resampling=Resampling.nearest,
                dst_nodata=np.nan,
            )

gcp_da = xr.DataArray(
    reprojected,
    dims=("id", "polarization", "y", "x"),
    coords={
        "id": [item.id for item in items],
        "polarization": list(POLARIZATIONS),
        "x": x,
        "y": y,
    },
    attrs={"crs": crs, "transform": tuple(target_transform)},
)

gcp_da

with rasterio.Env(GDAL_HTTP_HEADERS=f"Authorization: Bearer {token}"): with rasterio.open(items[0].assets["enclosure_tiff"].href) as src: reprojected = np.full( (len(items), src.count, target_height, target_width), np.nan, dtype=src.meta["dtype"], ) for i, item in enumerate(items): with rasterio.open(item.assets["enclosure_tiff"].href) as src: gcps, gcp_crs = src.gcps reproject( source=rasterio.band(src, src.indexes), destination=reprojected[i], gcps=gcps, src_crs=gcp_crs, dst_transform=target_transform, dst_crs=crs, resampling=Resampling.nearest, dst_nodata=np.nan, ) gcp_da = xr.DataArray( reprojected, dims=("id", "polarization", "y", "x"), coords={ "id": [item.id for item in items], "polarization": list(POLARIZATIONS), "x": x, "y": y, }, attrs={"crs": crs, "transform": tuple(target_transform)}, ) gcp_da

Out[15]:

<xarray.DataArray (id: 3, polarization: 4, y: 144, x: 217)> Size: 1MB
